Creating new Nodes in the Database Structure View

Eclipse SQL Explorer provides the 'net.sourceforge.sqlexplorer.node' extension point, which allows you to create new nodes in the database structure view.

There are 3 different classes you can extend to create a new node:

• AbstractNode:
  This is the most basic implementation. By extending this class you can create your own custom node.
• AbstractFolderNode:
  This class extends AbstractNode. By extending this class you can create a folder node like for example the tables node.
• AbstractSQLFolderNode:
  This class extends the AbstractFolderNode and provides an easy way to create a folder node, whose children can be retrieved using an SQL statement.

Creating a new SQL Folder Node

In this tutorial, we'll create a new Procedures folder node for the MySQL database.

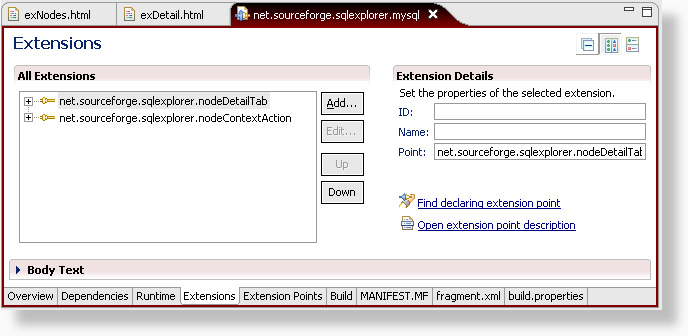

Step 1: Assuming that you've already created a fragment project, open the fragment.xml and go to the extensions tab. We haven't used this extension point yet, so we need to add it first using the 'Add' button.

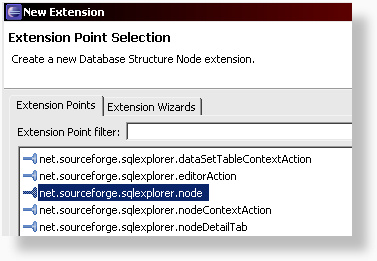

Step 2: Select the net.sourceforge.sqlexplore.node extension point.

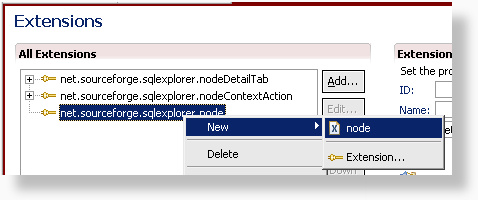

Step 3: Right click the extension point and create a new node.

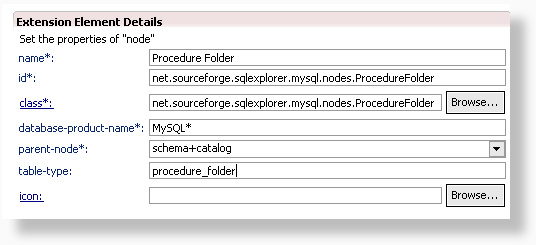

Step 4: This is where we define the most important details for our new extension point.

In the name field, we have to provide a name for this node. This name is only used to make it easy to identify your node. Let's call this new node the Procedure Folder node.
As the id, we'll use the same name as our class name to make sure the node id is unique.
It makes sense to keep all node extensions together in one package, so we'll name our new procedure folder class net.sourceforge.mysql.nodes.ProcedureFolder.
In the database product name field, we specify that this node is only available for MySQL databases.
We want this node to appear on the same level as the tables node, so we select 'schema+catalog' as the parent node.
Every node needs to have a type identifier and in this case, since it is a folder that contains procedures, we'll give it the type procedure_folder. The type identifier can be used later on to add new actions specifically for this node type.
If we had an icon available for the procedures, we could select one in the Icon field. Note that for any classes that extend AbstractFolder or AbstractSQLFolder, the icon is not used for the folder node, but for the childNode instead.
Once we've entered all information, we can generate our new class by clicking on the class link.

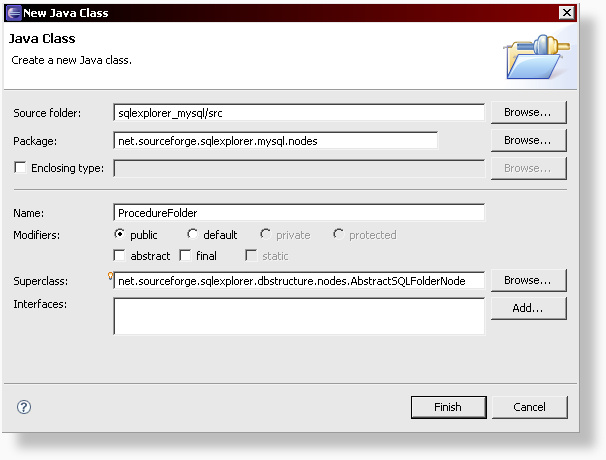

Step 5: Change the super class to AbstractSQLFolderNode.

Step 6: Once the class is generated, we create a new entry in our text.properties file to hold the label for our procedure node.

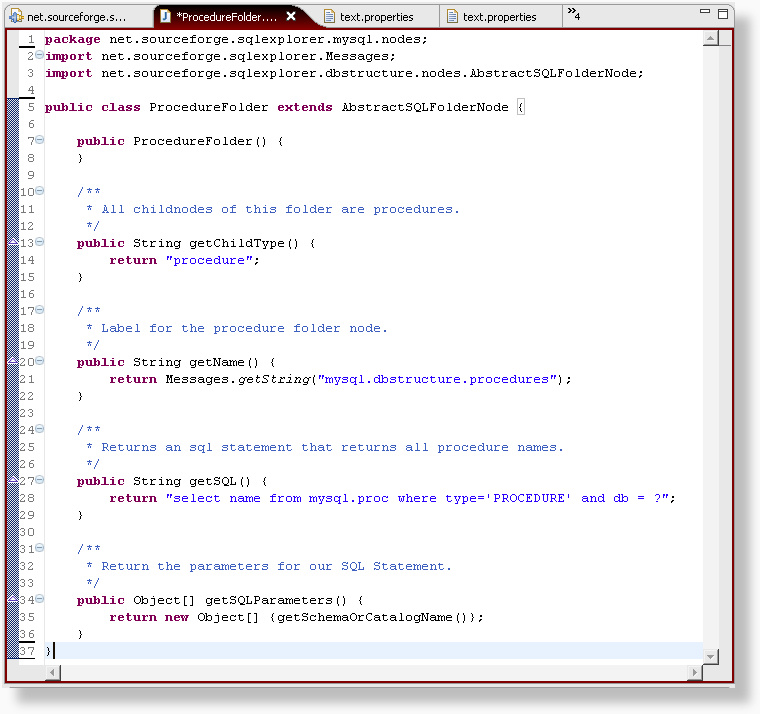

Step 7: Update the methods of the generated class. The image says it all..

All we have to do now is save everything and run SQL Explorer with our new extension. Here's the end result.
